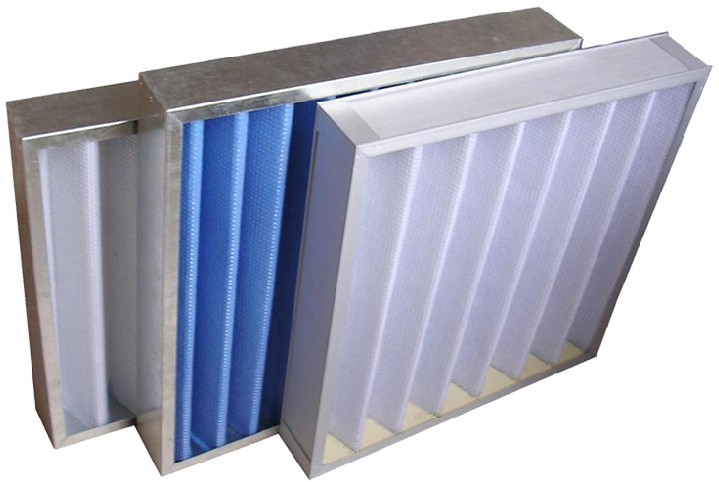

云南昆明初效過濾器,云南昆明中效過濾器,云南昆明高效過濾器折疊式初效空氣過濾器 Fold-down coarse efficiency air filter



特點Features
●紙框或鋁合金金屬外框
●阻力小、風量大
●適用于空調系統的初級過濾
●Paper box or aluminum metal frame
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型號尺寸及其他參數
Standard specification 型號 model 外形尺寸 Outside Dimensions (mm) 額定風量 Rated air flow (m3/h) 初阻力 Initial resistance (Pa) 效率（級別） Efficiency(class) 濾料型號 Model of filter media CJ-S4-1 295×295×46mm 12″×12″×13/4″ 800m3/h 25Pa 50% (計重法) weight

G3 G4 綠色、藍色、白色初效過濾棉 Green, blue, white, early filter cotton effect CJ-S4-2
495×295×46mm 20″×12″×13/4″ 1300m3/h CJ-S4-3
495×495×46mm 20″×20″×13/4″ 2200m3/h CJ-S4-4
595×295×46mm 24″×12″×13/4″ 1600m3/h CJ-S4-5
595×495×46mm 24″×20″×13/4″ 2700m3/h CJ-S6-6
595×595×46mm 24″×24″×13/4″ 3200m3/h

*可要據用戶要求定制不同規格型號的過濾器 According to user requirements to customize different specifications and types of filters
